Drain Back Solar Water Heating System

It has the following six fundamental characteristics. The advantages of the drain-back solar system are. The advantage of a drain-back system is built-in freeze and overheating protection. The water in the system is in an open loop and as such drains itself via gravity back to a storage vessel when it has reached it shut off temperature or is too cold. A storage tank to hold the end-use water being heated. Large Drainback System for 16 Unit Apartment This is a large drainback system to provide domestic hot water for a 16 unit apartment building in the Pennsylvania. The fluid in the system drains back into this vessel when the system is not running.

Drain back system is a traditional solution used to prevent overheating and freezing in solar systems.

Drainback solar thermal systems are maintenance free with excellent reliability. The heat exchange fluid in the collector array and solar loop piping drains back by gravity into the systems storage reservoir whenever the pump stops circulating. Care must be taken to plumb the supply and return so that they will drain down. This system requires a drain. It is simple to install and maintain because filling it up is as simple as pouring the liquid in The solar fluid is kept in the building overnight preventing freezing in the solar panel The solar circuit is protected against high temperatures and pressures which occur in. The fluid in the system drains back into this vessel when the system is not running.

Active Vented System Drain Back Solar Water Heating System Api Energy

Drain back solar water heating system. Indirect active closed-loop drainback systems are an excellent choice for heating water unless you receive a lot of snow and have really cold temperatures. It works in any climate and will not freeze or boil. The water in the collector loop drains into a reservoir tank when the pumps stop by controller.

Some of the solar water heating designs are very simple and low cost. They protect from freezing and overheating with fewer system components. The advantage of a drain-back system is built-in freeze and overheating protection.

The fluid is thus immune to overheating and freezing. A drain back system uses water as its heating method not glycol. Drainback solar hot water systems are closed-loop indirect active systems.

The water in the collector loop drains into a reservoir tank when the pumps stop by controller. Drain back system is a traditional solution used to prevent overheating and freezing in solar systems. Theyre the best choice in hot climates although theyre more expensive to install than ICS.

What is a drain back system. A drain down valve and special controls required. The advantage of this system is that there will never be non-moving fluid in the panels in winter so there is no chance of it freezing.

A drainback systems primary freeze protection mechanism however is gravity itself. The heat exchange fluid in the collector array and solar loop piping drains back by gravity into the systems storage reservoir whenever the pump stops circulating. The water can be used as a safe and efficient heat transfer fluid.

The projects range from simple batch heaters for warm climates through closed loop and drain back systems that will. Non pressurized systems eliminates failure prone system components.

Drainback Solar Boiler Sunoptimo Solar Thermal

Drain Back Options For Solar Hot Water Systems Best Solar Panels Solar Hot Water System Solar Installation

Solar Thermal Plumbing Arrangements

Drain Back Solar Hot Water Building America Solution Center

Solar Hot Water Drainback Indirect System Dx 120 64 Web Solar Supplies

Energy Grid Solutions Terms Defined 712 309 1284

Sizing The Air Space In A Non Pressurized Drainback System 2017 11 29 Pm Engineer

Solar Thermal Collector Drain Back System Storage Water Heater Water Heating Container Drainbacksystem Angle Text Material Png Pngwing

Db Drainback System

Drainback Vs Closed Loop Solar System Youtube

Types Of Solar Hot Water System In Orlando

Drain Back Solar Hot Water Building America Solution Center

Solar Hot Water Heater Systems The Drain Back Design Solar Hot Water Heater Solar Heating Solar Energy Panels

Solar Drain Back Systems

Simple Elegant Solar Hot Water Drain Back System Crestone Solar School

Drain Down Solar Water Heating System 2 2 Main System Components 2 2 1 Download Scientific Diagram

Drainback Solar Water Heaters Or Pv Electric Solar

Components Of Solar Water Heater Ppt Download

Solar Hot Water

Drainback Solar Water Heater Systems Traditional

Drainback Solar Thermal System Design Solar365

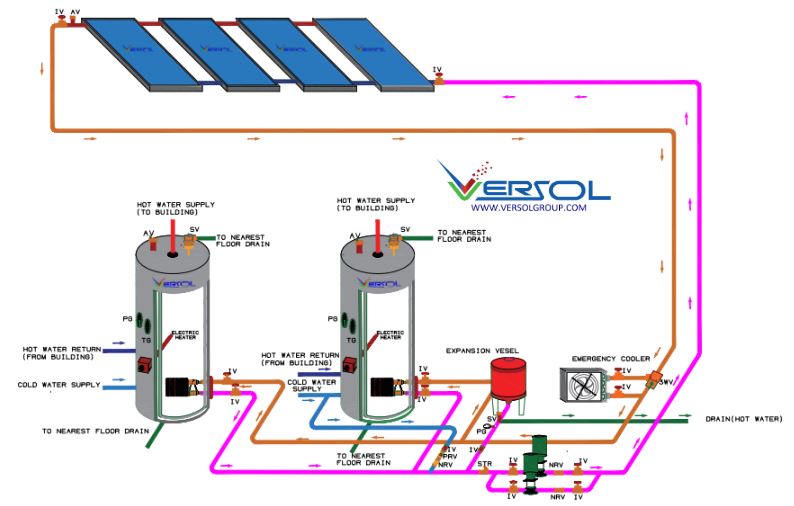

Versol Solar Water Heating System Offers In Forced Solar Water Heating System Drain Back Solar Water Heating System With Flat Plate Collectors Or Evacuated Tube Collector Solarwaterhetingsystem Solar Energystorage Renewables Greenenergy

Active System Forced Solar Water Heating System Api Energy

Solar Water

Solar Thermal

Greentherm Drainback Solar Thermal

Our Systems Products

Solar Water Heating Systems Freeze Protected Warm Weather Systems

Solar Water Heating Overview Diy Solar Renewable Energy Resources

Active And Drainback Closed Loop Solar Hot Water Systems

Open Loop Solar Water Heating System Relemech

Solar Thermal Plumbing Arrangements

Hydraulic Scheme Of A Solar Heating System With Drain Back Design And Download Scientific Diagram

Handling Drain Back Plumbing With Dips

Instruction Manual For Domestic Solar Water Heating System Numbers Manualzz

Let Us Learn About Solar System On You Differents System Solar Water Heater

Solar Draindown Heating Systemss

Drainback Solar Boiler Sunoptimo Solar Thermal

Smart Solar Thermal Drainback System Installs For Half The Price Of Other Models

Solar Hot Water System Design Construction Of Spartan Hannah S Home

Drainback Solar Thermal System Heat Exchangers Solar365

Nes Hot Water

German Innovation In Solar Water Heating Buildinggreen

Solar Water Heating Piping And Instrumentation Diagram Solar Power Drainbacksystem Angle Furniture Renewable Energy Png Pngwing

Our Systems Products

Welcome To Zen Renewables Ireland High Quality Solar Thermal Systems And Components For All Sort Of Heating And Cooling Applications

Solar Hot Water Www Sunmaxxsolar Com Solar Hot

Drainback Traditional Solar Water Heater Systems By Premium

1

It works in any climate and will not freeze or boil.

Drainback solar hot water systems are closed-loop indirect active systems. Non pressurized systems eliminates failure prone system components. What is a drain back system. Drain back system is a traditional solution used to prevent overheating and freezing in solar systems. The heat exchange fluid in the collector array and solar loop piping drains back by gravity into the systems storage reservoir whenever the pump stops circulating. One or more solar hot water collectors. Save as much as 7000 by building your own system. Care must be taken to plumb the supply and return so that they will drain down. Theyre the best choice in hot climates although theyre more expensive to install than ICS.

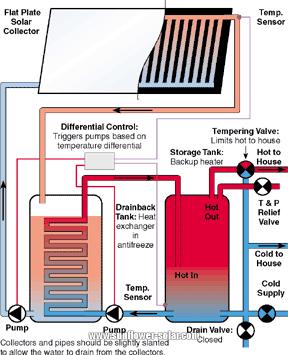

The Drainback Series is an indirect system. A heat-transfer fluid HTF usually water contained in an unpressurized closed loop is pumped through the collectors and is separate from the end-use water being heated through a heat exchanger. A system based on drainback also called a self-draining or gravity drain system allows the solar collectors to drain naturally and passively every time the circulation pump stops. This system requires a drain. Drainback systems can use either flat-plate or evacuated-tube collectors to heat a solar fluid which is usually just simple water. The advantage of this system is that there will never be non-moving fluid in the panels in winter so there is no chance of it freezing. Drainback systems A drainback solar thermal system features a drain back vessel.
